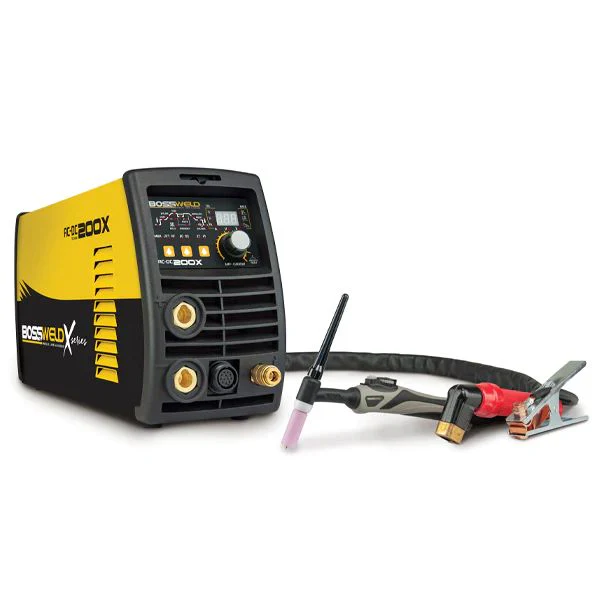

Bossweld inverter Welder - 200X Ac/Dc

692200 Bossweld X-Series 200X AC/DC Inverter Tig/Stick Pulse Welding Machine, 15 Amp plug The Bossweld 200X AC/DC TIG welder utilities the latest in IGBT welder technology and the front panel is designed to simplify the welding process, giving exceptional results on Aluminium, Stainless Steel and Mild Steel. Industrial compact case with recessed controls ARC force and Hot start for greater control and ease of use Lightweight & Compact Design only 7kg! 3 year commercial warranty Standard inclusions: Professional WP26 Style 12ft TIG Torch with variable amps control. 3m MMA lead with heavy duty twist lock electrode holder 2.5m Earth Lead with heavy duty clamp 2m gas hose Quick connect fitting for connecting to machine Carry Strap Machine manual Specifications: Input power: Single phase 230V Output current range: TIG AC 10-200A, TIG DC0-170A Open Circuit voltage: 52V I Max: TIG 30.5A, MMA 39.7A I eff: 15A Duty cycle at 40deg C: 25% at 200A, 60% at 125A Insulation Class: IP21/ H Tungsten Diameter: 1.0 - 3.2mm Electrode Diameter: 1.6mm - 4.0mm Thermal overload: YES Minimum generator: 8 Dimension (mm): 480 X 240 X 140mm Weight (Kg): 7
