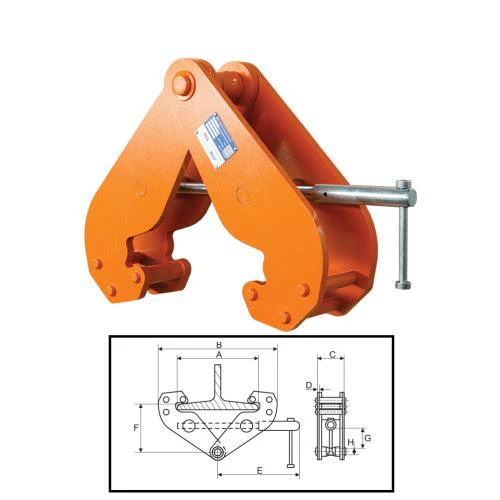

ITM Beam Clamp-10 Ton-320mm Beam Width

TM9121-10032 | ITM Beam Clamp, 10 Ton, 320mm Beam Width

 Durable all steel construction
 Colour coded to WLL for safety
 Tested & certified to AS 4991

 10,000kg Rated capacity
 Orange colour coded to W.L.L. for safety
 Beam width to suit 90 - 320mm

 Weight: 15.9kg

 Dimensions (mm)
A(max): 356
B (min): 250
B (max): 520
C: 120
D: 8
E: 285
F (min): 230
F (max): 160
G: 52
H: 39
