ITM G80 Lifting Point-Oblong Eye Bolt-M36-12.8 T

TM9812-04036 | ITM G80 Lifting Point-Oblong Eye Bolt-M36-12.8 T

Features
Premium-grade heat treated alloy steel
Specifications, batch and brand markings as per Australian Standards requirements
Tested and certified to AS 3776

Specifications
W.L.L. 0 deg: 12.8T
W.L.L. 90 deg: 8T
Thread: M36

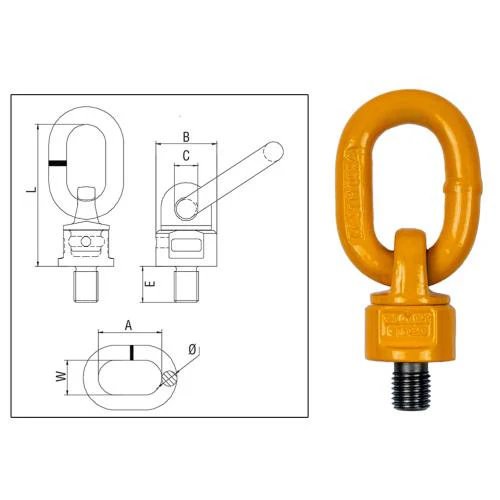

Dimension A: 115mm
Dimension B: 80mm
Dimension C: 28mm
Dimension E: 50mm
Dimension L: 203mm
Dimension W: 50mm
Dimension Dia: 22.5mm
