Kale Hd25 92-97mm W4 Ea**

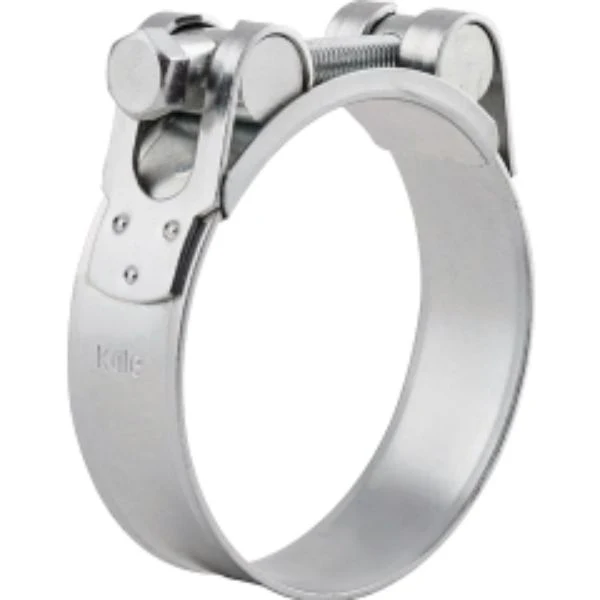

HDT259297W4 25mm Band Width Heavy Duty Clamp
HD25 | 92 97mm capacity | W4
Features: Easy mountability at application areas with simple design. Uniform clamping force throughout 360 degrees. Three point welded durable design. Burr free and convex band edges.
Technical Spec: Band Width 25mm Capacity (min to max) 92 to 97mm Tightening Torque (max) 20Nm Bolt M8 x 70mm Grade W4 Stainless Band Saddle Bolt Tube Bushing Bolt Nut (1) Screw Head 13mm Hex
(1) Band Saddle 1.4301 DIN EN 10088 2 or equivalent |Bolt 1.4301 DIN EN 10088 3 or equivalent | Tube 1.4401DIN EN 10088 2 or equivalent | Bushing Bolt Nut 1.4301DIN EN 10088 2 or equivalent
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001 management systems as per the expectations of the global automotive
Description
HDT259297W4 25mm Band Width Heavy Duty Clamp
HD25 | 92 97mm capacity | W4
Features: Easy mountability at application areas with simple design. Uniform clamping force throughout 360 degrees. Three point welded durable design. Burr free and convex band edges.
Technical Spec: Band Width 25mm Capacity (min to max) 92 to 97mm Tightening Torque (max) 20Nm Bolt M8 x 70mm Grade W4 Stainless Band Saddle Bolt Tube Bushing Bolt Nut (1) Screw Head 13mm Hex
(1) Band Saddle 1.4301 DIN EN 10088 2 or equivalent |Bolt 1.4301 DIN EN 10088 3 or equivalent | Tube 1.4401DIN EN 10088 2 or equivalent | Bushing Bolt Nut 1.4301DIN EN 10088 2 or equivalent
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001 management systems as per the expectations of the global automotive
