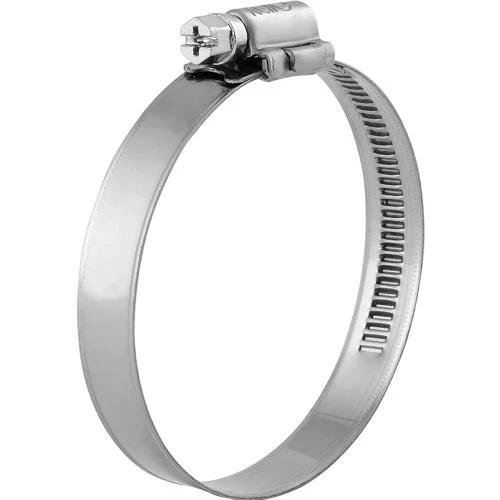

Kale WD12 60-80mm W1 10pc

WD126080W1 | Kale WD12 60-80mm W1 (10pc)

Worm Drive 12 | 60-80mm Capacity | W1

Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr-free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.
Higher tightening torque and clamping force with 12mm band width.

Technical Spec:
 Band Width - 12mm
 Capacity (min - max) - Diam 60-80mm
 Tightening Torque (max) - 5.0Nm (1)
 Screw Housing Length - 24mm
 Grade W1 - Screw(Zinc Plated), Band(Zinc Aluminium Plated) & Housing(Zinc Plated)
 Corrosion Resistance (min.Hour) IS0 9227 - 72
 Screw Head - FL | 7mm Hex

(1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm
(2) Screw & Housing (Zinc Plated) | Band – Mild Steel (Zinc Plated)

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
