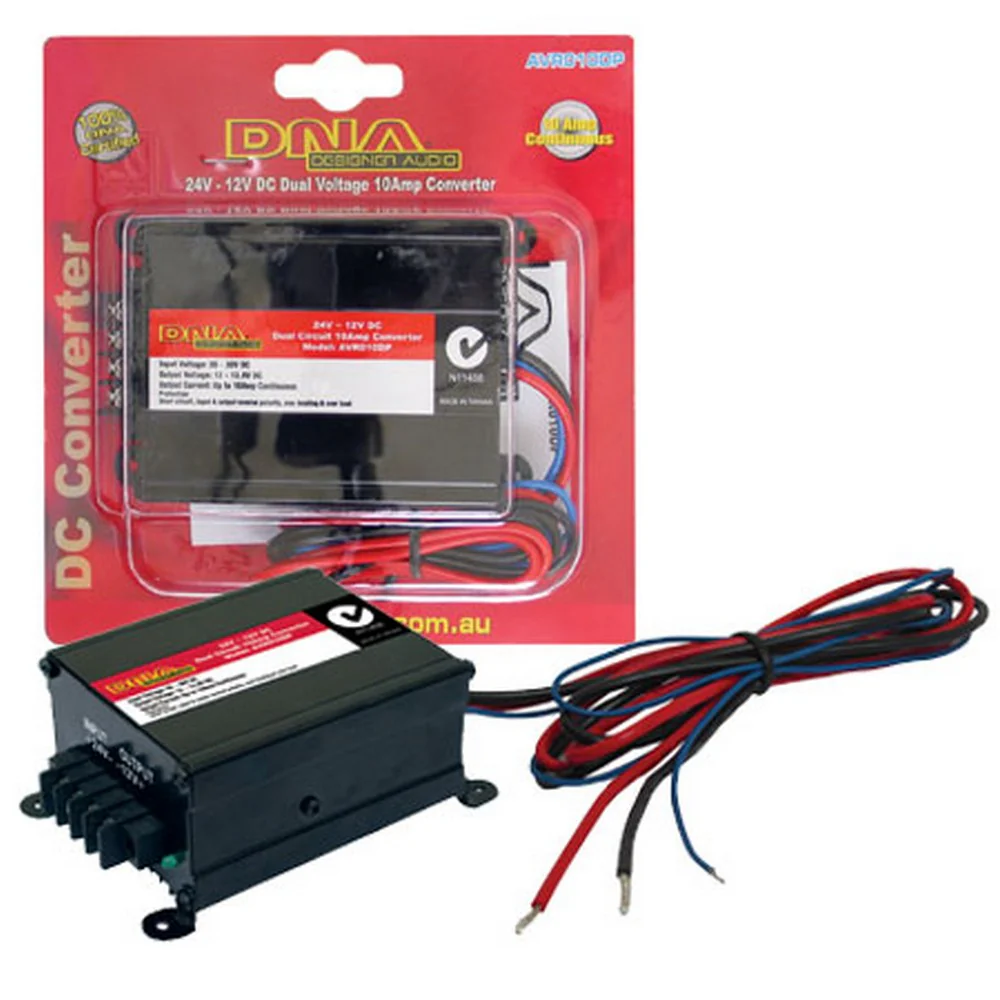

Voltage Reducer 24V To 12V 10Amps Continuous Dual Output

24 Volt DC to 12 volt DC voltage reducer with dual outputs. Fitted with 2 independent 12VDC outputs. Output 1: using the terminals on the side of the case. Output 2: using the 3 wires. Red: 12VDC postive output Black: negative output Blue: 24VDC trigger wire for activating the circuit. Input DC voltage range: DC20~30V DC Output voltage range: 12V~13.8V Continuous power: 10 Amps Peak power: 15 Amps No load current draw: 20mA Max. power efficency: >90% Cooling: Air convection Input polarity reverse: Diode protection Output polarity reverse: Circuit protection Over heating: Circuit protection Over load: Circuit protection Output short: Circuit protection Fuse: 15 Amps Dimension (LxWxH): 90 x 73 x 45mm Weight: 330g
